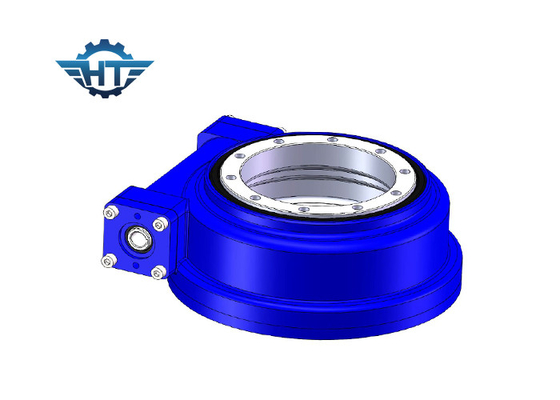

제품 상세 정보:
|
| 기어 비율: | 57:1 | 타입: | 에워싸는 |
|---|---|---|---|
| 애플리케이션: | 건설 기계 및 태양 에너지 | 드라이버: | 유압 모터 및 전기 모터 |
| IP은 등급입니다: | IP66, IP65 | 색: | 요청된 것으로 |
| 정확도: | 0.01도 | 효율성: | 40% |
| 강조하다: | solar tracker drive,slewing gear |
||
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Technical Data
| VE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Holding Torque (N.m) | TiltingTorque (N.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Effeciency | Precision (degree) | IP | Working Temp.(℃) | Self-locking | Weight (kg) |
| 3" | 600 | 5800 | 2100 | 3.6 | 15 | 31:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 12kg |
| 5" | 800 | 9200 | 5000 | 16 | 27 | 37:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 18kg |
| 6" | 2250 | 20400 | 11200 | 50 | 80 | 51:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 28kg |
| 7" | 1750 | 13200 | 7000 | 34 | 58 | 57:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 32kg |
| 9" | 4300 | 27200 | 16000 | 60 | 130 | 61:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 52kg |
| 12" | 5600 | 40560 | 25000 | 77 | 190 | 78:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 65kg |
| 14" | 6750 | 44200 | 48000 | 110 | 230 | 85:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 88 kg |
| 17" | 9460 | 53040 | 67000 | 142 | 390 | 102:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 135 kg |
| 21" | 16000 | 65000 | 89000 | 337 | 640 | 125:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 192 kg |
| 25" | 21450 | 89000 | 112000 | 476 | 950 | 150:1 | 43% | ≤0.1 | 66 | -30～+120 | Yes | 251 kg |
Remark: For more detailed dimensions and parameters, please refer to our sales drawings.
Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
